power — Western US Power Grid

Description: Undirected network representing the topology of the high-voltage power grid of the Western States of the United States, compiled by D. J. Watts and S. H. Strogatz, who used it as an example of a small-world network. Nodes are generators, transformers and substations, and an edge connects two nodes if they are connected by a high-voltage transmission line. The data were obtained from the network data collection of M. E. J. Newman, and the node IDs are the same as those used by Watts.

Tags

Technological Power grid Unweighted

Added

2020-08-11

Citation

D.J. Watts and S.H. Strogatz, "Collective dynamics of 'small-world' networks." Nature 393, 440-442 (1998). 10.1038/30918 Sci-Hub

Upstream URL OK

http://www-personal.umich.edu/~mejn/netdata/

Networks

Tip: hover over a column header for a description.

Column legend

$\left<k\right>$: Mean degree
$\sigma_k$: Standard deviation of the degrees
$\lambda_h$: Largest eigenvalue of the Hashimoto (non-backtracking) matrix
$\tau$: Random walk mixing time
$r$: Degree assortativity
$c$: Global clustering coefficient
$\oslash$: (Pseudo-) diameter
$S$: Relative size of the largest component
NPs: Node properties
EPs: Edge properties

Name	Nodes	Edges	$\left<k\right>$	$\sigma_k$	$\lambda_h$	$\tau$	$r$	$c$	$\oslash$	$S$	Kind	Mode	NPs	EPs	gt	GraphML	GML	csv
power	4,941	6,594	2.67	1.79	6.23	3689.25	0.00	0.10	46	1.00	Undirected	Unipartite			86 KiB	112 KiB	111 KiB	89 KiB

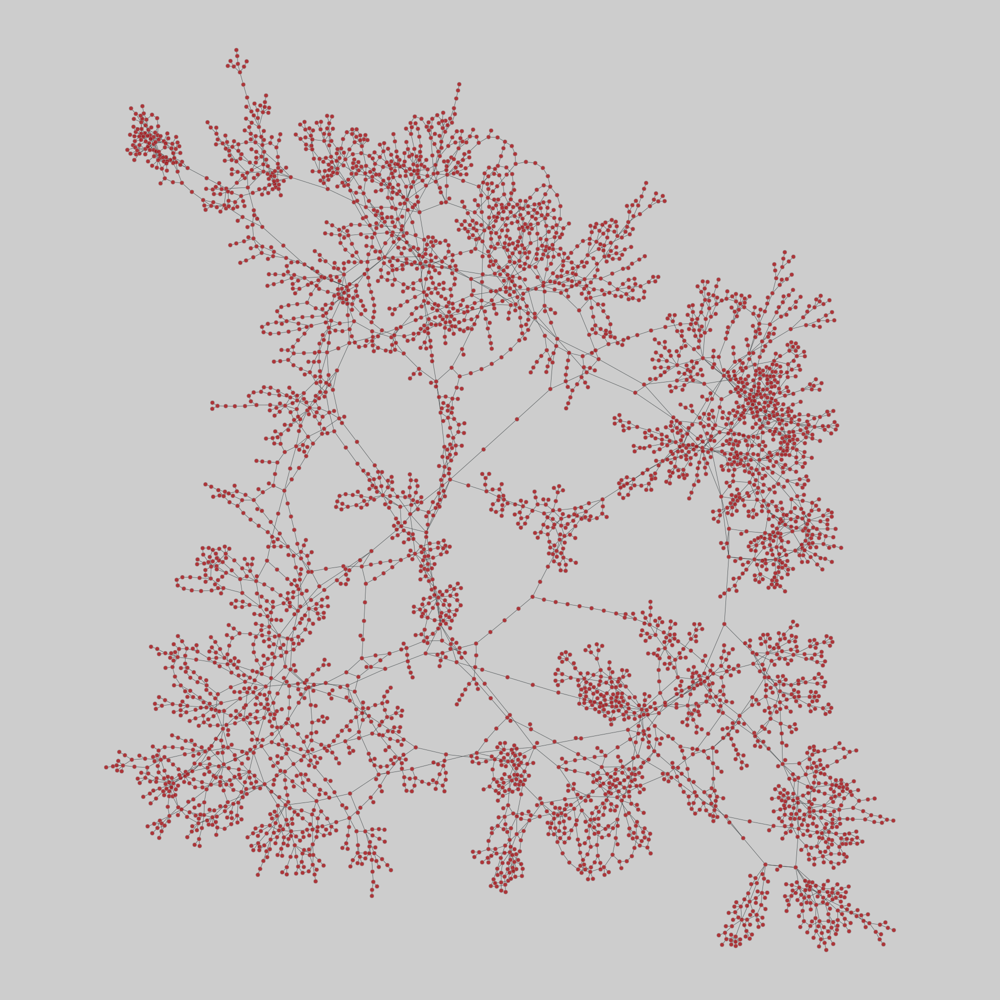

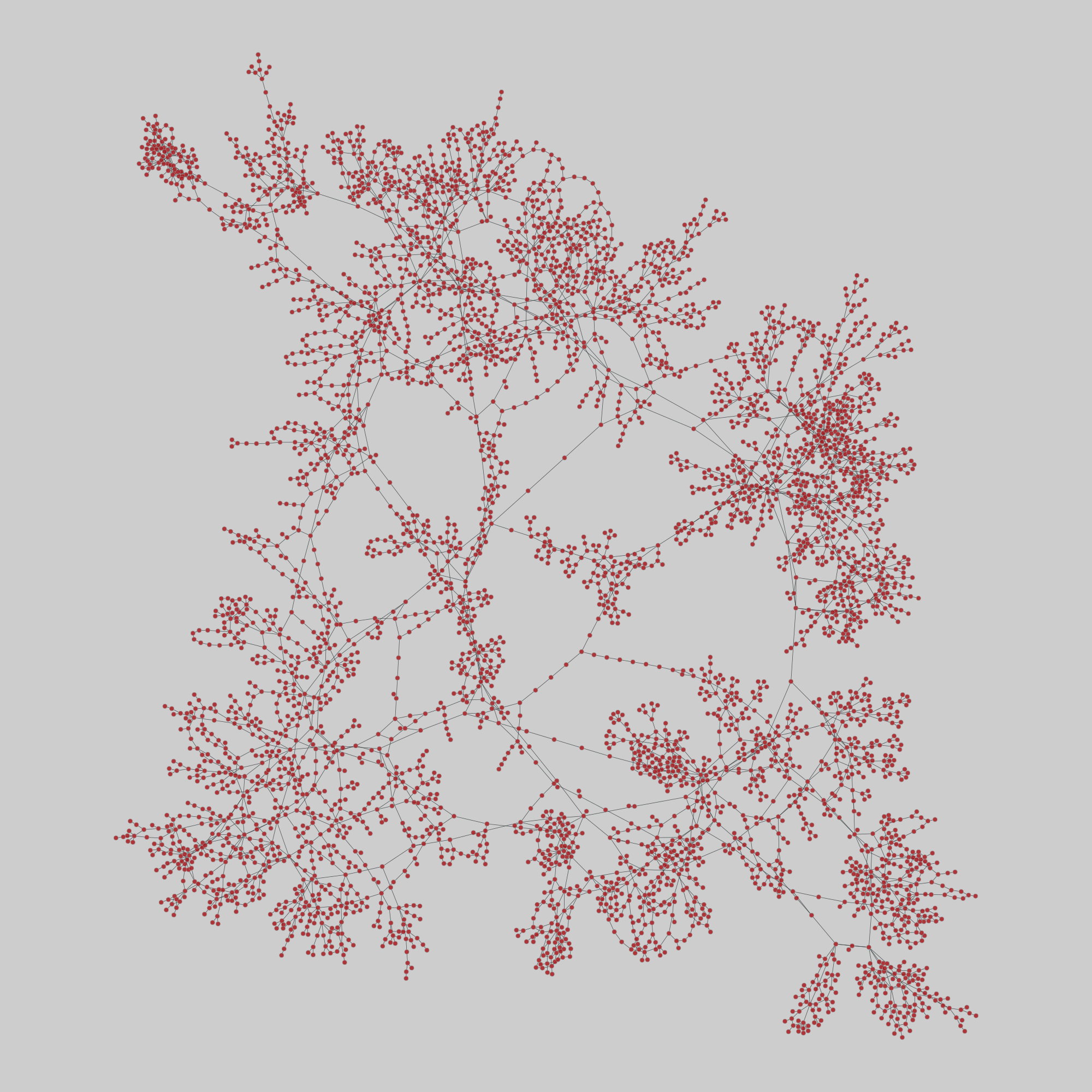

Ridiculograms^*

^* These are automatically generated force-directed visualizations, and can be quite meaningless for networks both big and small. They should not be taken seriously as sources of scientific insight. See here for a discussion.
