celegans_interactomes — C. elegans interactomes (2009)

Description

Networks of protein–protein interactions and other functional relationships between genes of the nematode Caenorhabditis elegans, from the study of N. Simonis and collaborators at the Center for Cancer Systems Biology (Dana-Farber Cancer Institute), which produced an empirically controlled, high-quality map of the C. elegans interactome. Nodes are genes (proteins), identified by their C. elegans sequence names (e.g. AC7.2), and an undirected edge connects two genes that are related in the corresponding source (a physical interaction between their proteins, a genetic interaction, correlated expression or similar phenotypes, see below). There are ten networks:

  • wi2004: protein interactions from the first high-throughput yeast two-hybrid (Y2H) map of Li et al. (2004);
  • wi2007: protein interactions from the new Y2H screens of Simonis et al. (Worm Interactome version 2007);
  • BPmaps: Y2H interactions from earlier smaller-scale "biological process maps" focused on specific processes;
  • WI8: the union of wi2004, wi2007 and BPmaps;
  • LCI: literature-curated interactions supported by small-scale experiments;
  • Interolog: interactions predicted from interactions between orthologous proteins in other species;
  • Genetic: genetic interactions;
  • Microarray: pairs of genes with highly correlated expression profiles in microarray experiments;
  • Phenotypes: pairs of genes with similar phenotypic profiles (e.g. in RNAi experiments);
  • IntegratedNetwork: the union of all of the above sources.

The networks have the following properties:

  • (Node) name: the gene's sequence name.
  • (Edge) pcc (Microarray): the Pearson correlation coefficient of the expression profiles of the two genes.
  • (Edge) phenotypes (Phenotypes): the phenotypic similarity score of the two genes.
  • (Edge) wi2004, wi2007 and bpmaps (WI8): the status of the interaction in each of the three source data sets (e.g. core or noncore; empty if the interaction is not in the data set).
  • (Edge) wi8, lci, interologs and genetic (IntegratedNetwork): whether the edge is present in the corresponding source network.
  • (Edge) phenotypes and coexpression (IntegratedNetwork): the phenotypic similarity score and the expression correlation of the two genes (NaN if not available).

The networks come from the C. elegans download page of the CCSB Interactome Database, whose other data sets are in the entries yeast_interactome_ccsb and collins_yeast (yeast) and interactome_vidal and human_interactome_2014 (human).

Tags
Biological Protein interactions Unweighted
Added
2020-08-11
Citation
  • N. Simonis et al., "Empirically controlled mapping of the Caenorhabditis elegans protein-protein interactome network." Nature Methods 6(1), 47-54 (2009) 10.1038/nmeth.1279 Sci-Hub
Upstream URL [Errno 111] Connection refused
https://web.archive.org/web/20240123025943/http://interactome.dfci.harvard.edu/C_elegans/index.php?page=download
Networks
Tip: click on a column header to sort the list, or hover over it for a description.
Column legend
$\left<k\right>$
Mean degree
$\sigma_k$
Standard deviation of the degrees
$\lambda_h$
Largest eigenvalue of the Hashimoto (non-backtracking) matrix
$\tau$
Random walk mixing time
$r$
Degree assortativity
$c$
Global clustering coefficient
$\oslash$
(Pseudo-) diameter
$S$
Relative size of the largest component
NPs
Node properties
EPs
Edge properties
Name Nodes Edges $\left<k\right>$ $\sigma_k$ $\lambda_h$ $\tau$ $r$ $c$ $\oslash$ $S$ Kind Mode NPs EPs gt GraphML GML csv

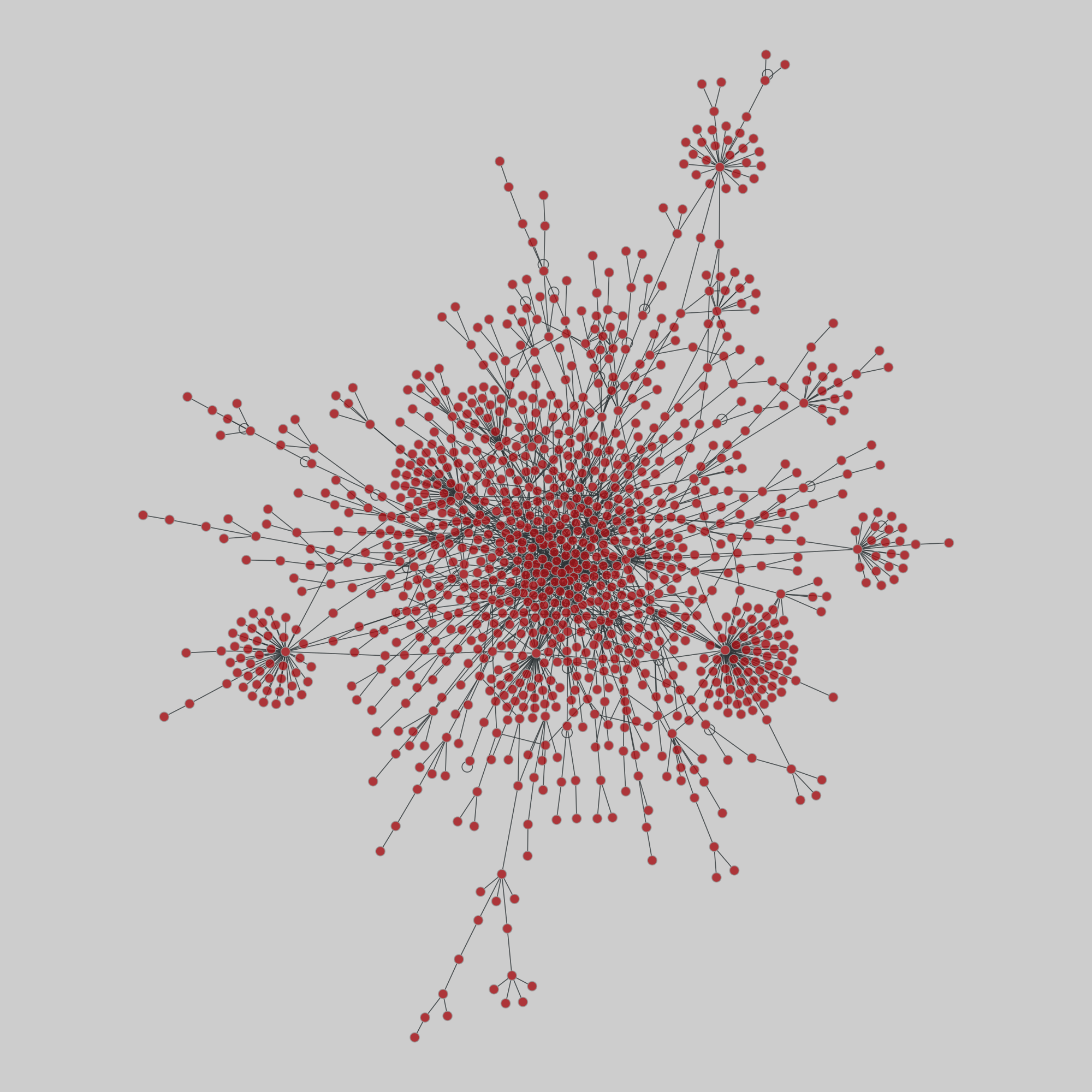

wi2007 1,496 1,816 2.43 4.48 7.86 93.32 -0.17 0.02 16 0.74 Undirected Unipartite name 33 KiB 45 KiB 44 KiB 34 KiB

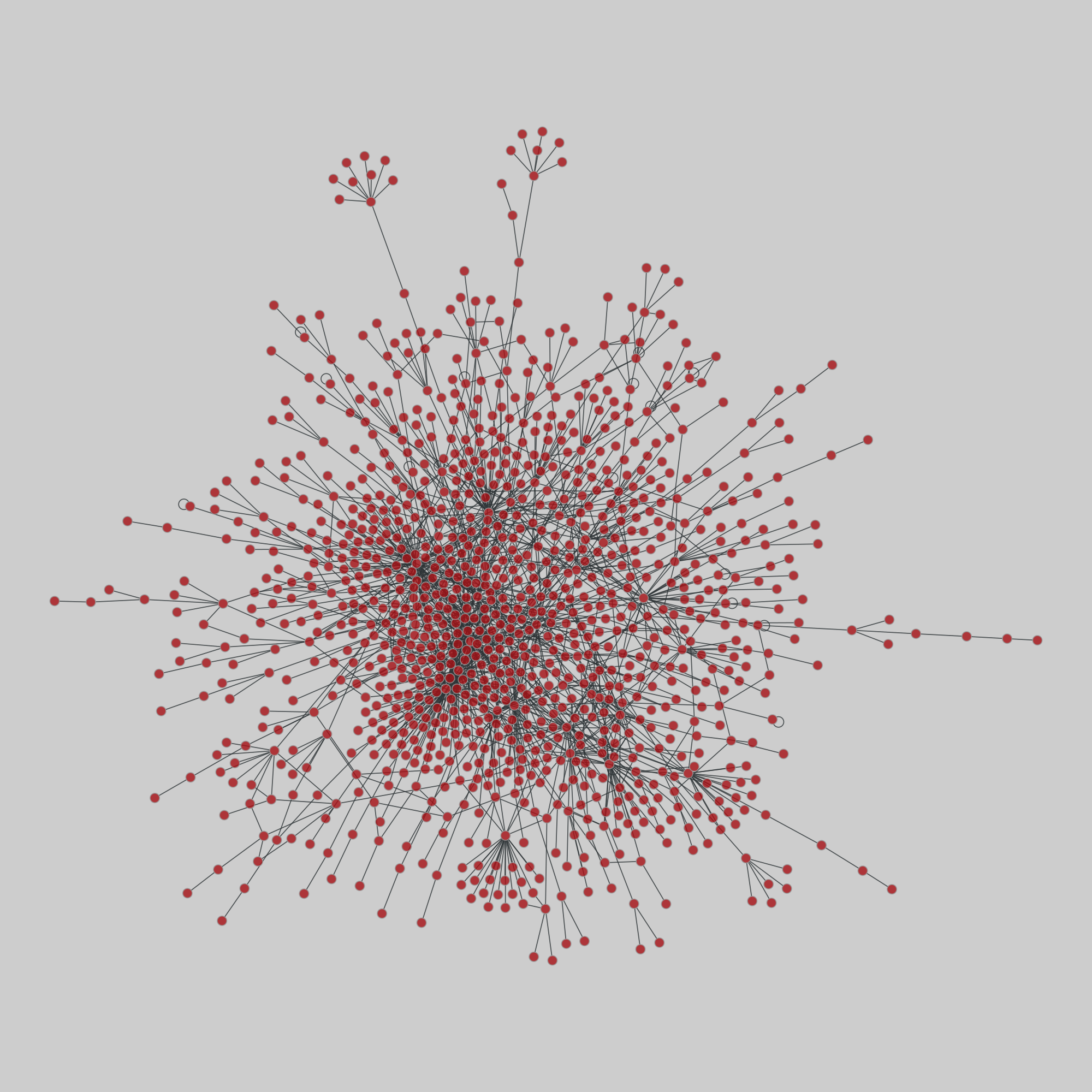

wi2004 1,237 1,735 2.81 5.27 8.82 55.47 -0.18 0.02 14 0.88 Undirected Unipartite name 27 KiB 37 KiB 37 KiB 29 KiB
BPmaps 537 554 2.06 2.58 3.29 96.79 -0.25 0.02 18 0.64 Undirected Unipartite name 12 KiB 16 KiB 16 KiB 12 KiB

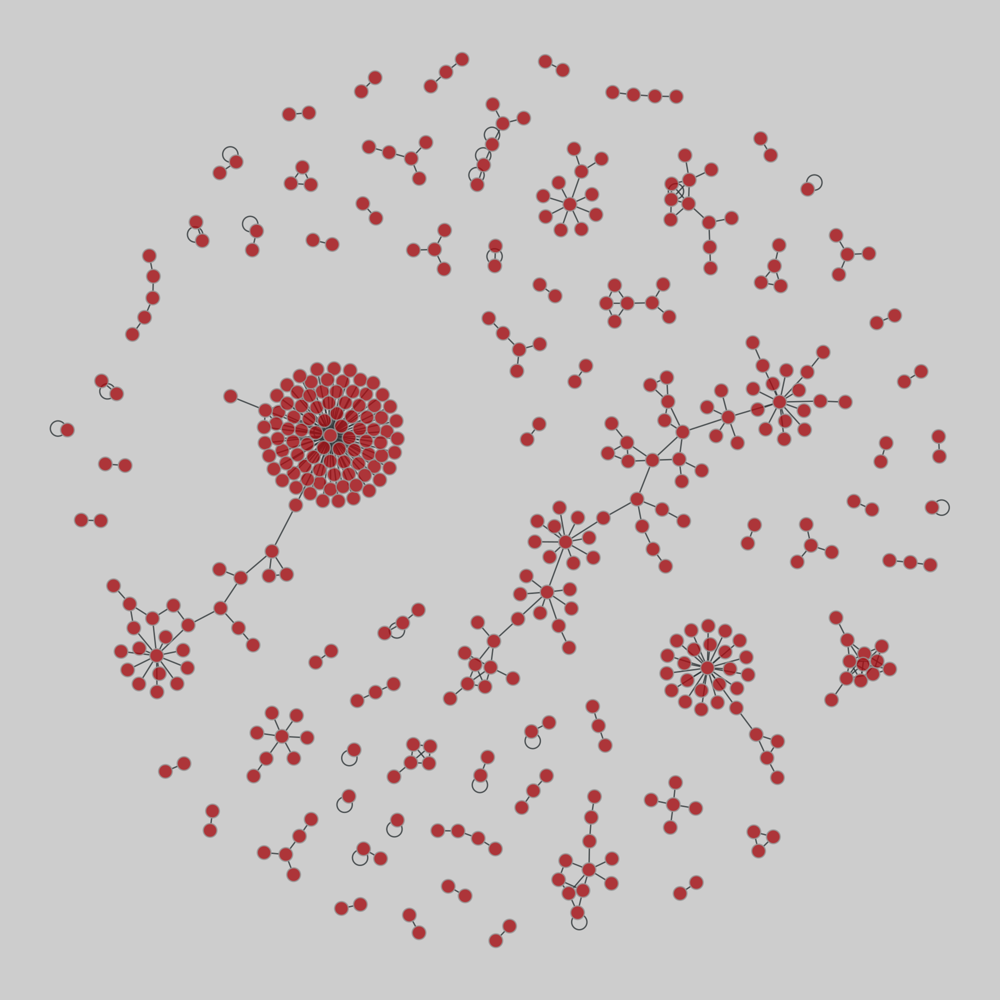

LCI 431 438 2.03 4.74 5.62 187.61 -0.16 0.04 11 0.27 Undirected Unipartite name 10 KiB 13 KiB 13 KiB 10 KiB

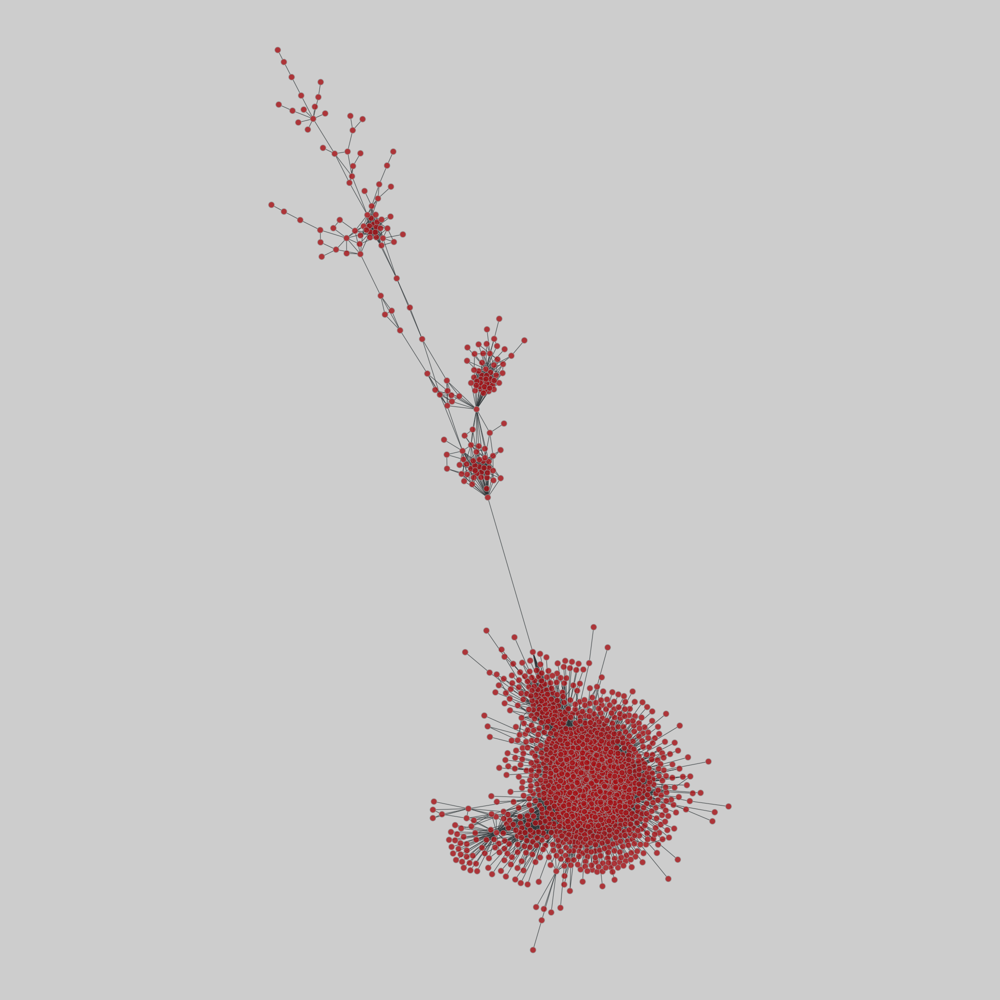

Microarray 2,436 136,930 112.42 167.11 358.18 2133.71 -0.07 0.52 21 0.96 Undirected Unipartite name 133 KiB 476 KiB 461 KiB 367 KiB

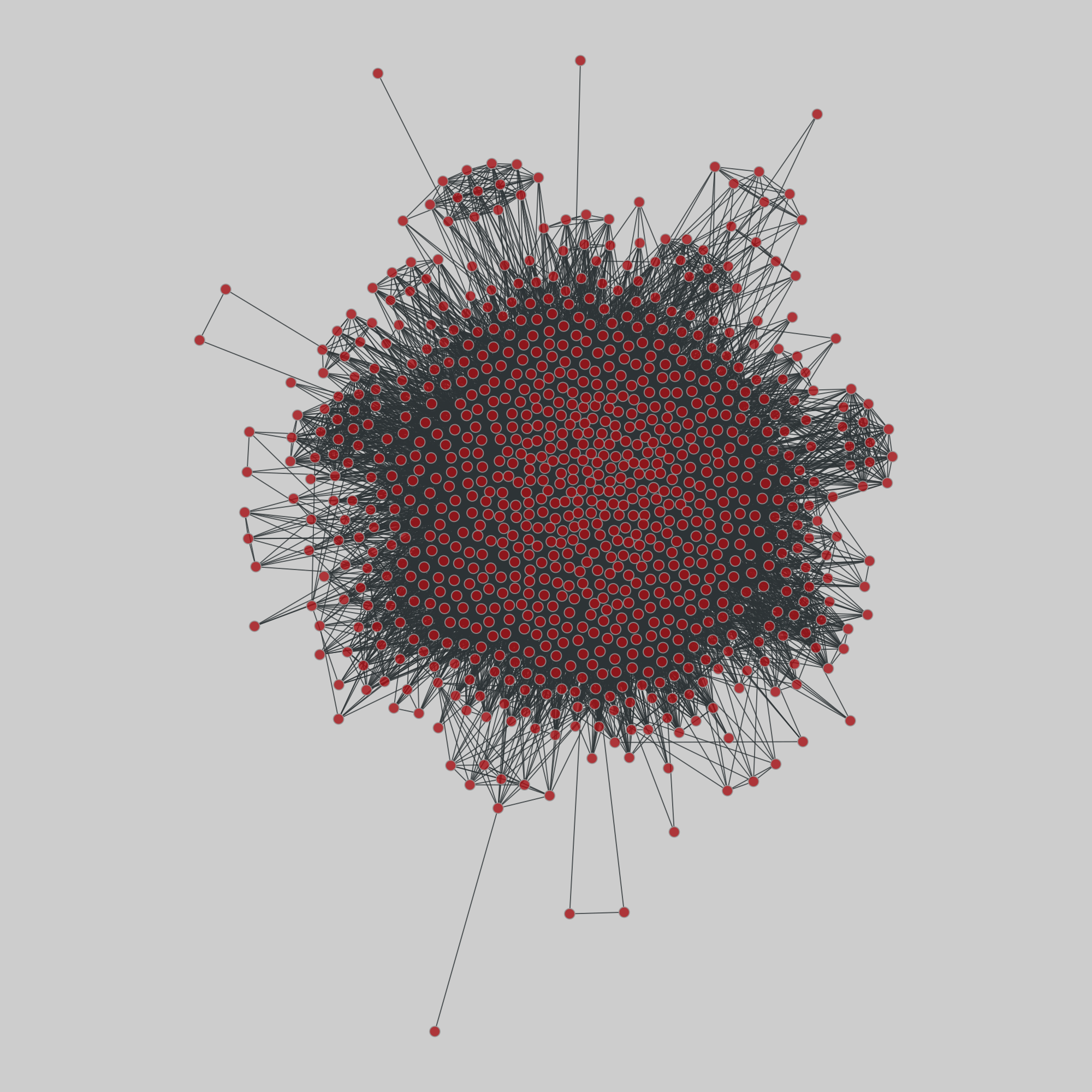

Phenotypes 912 22,738 49.86 47.35 93.61 4.27 -0.03 0.35 5 0.97 Undirected Unipartite name 39 KiB 87 KiB 87 KiB 71 KiB

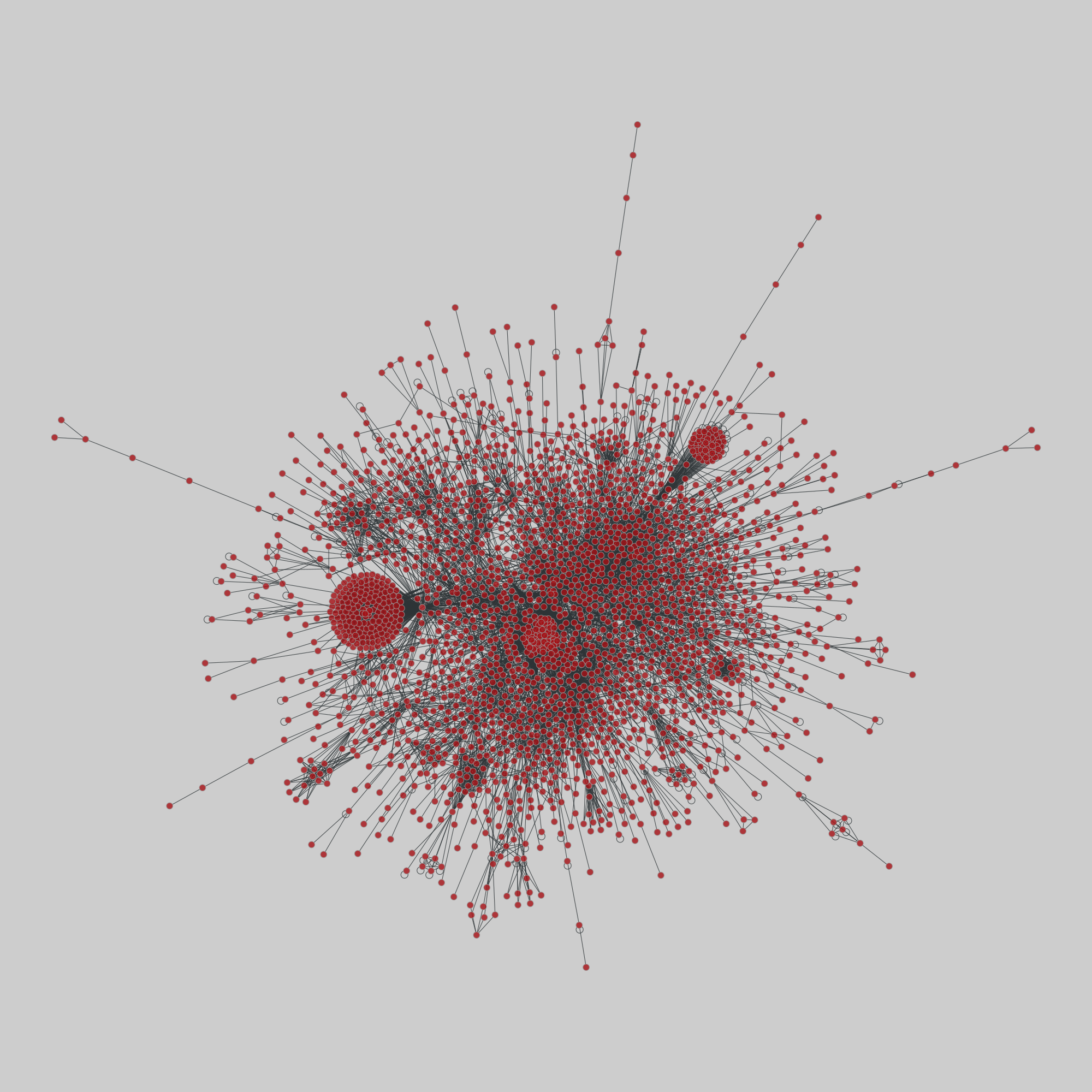

Interolog 2,724 14,322 10.52 20.23 71.43 139.68 -0.01 0.44 15 0.87 Undirected Unipartite name 66 KiB 108 KiB 107 KiB 90 KiB

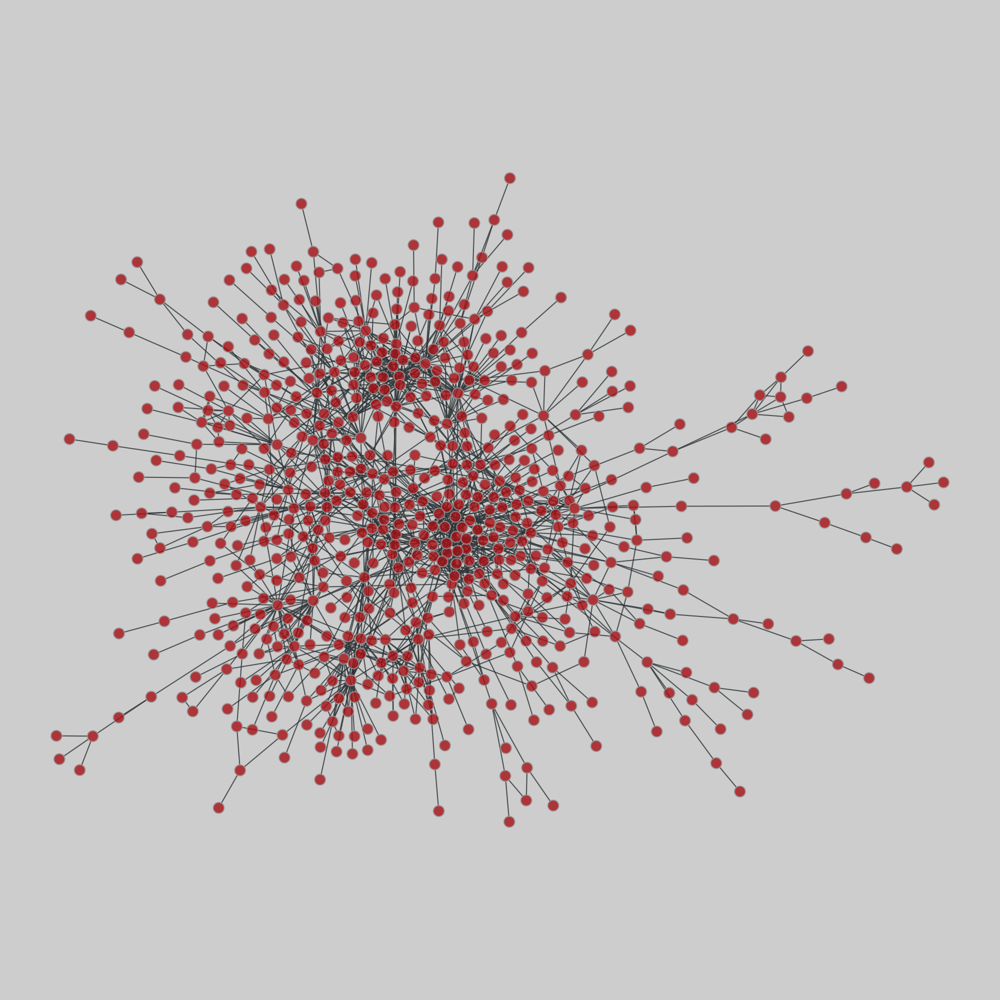

Genetic 759 1,593 4.20 5.15 10.46 53.09 -0.03 0.19 13 0.90 Undirected Unipartite name 18 KiB 25 KiB 24 KiB 19 KiB

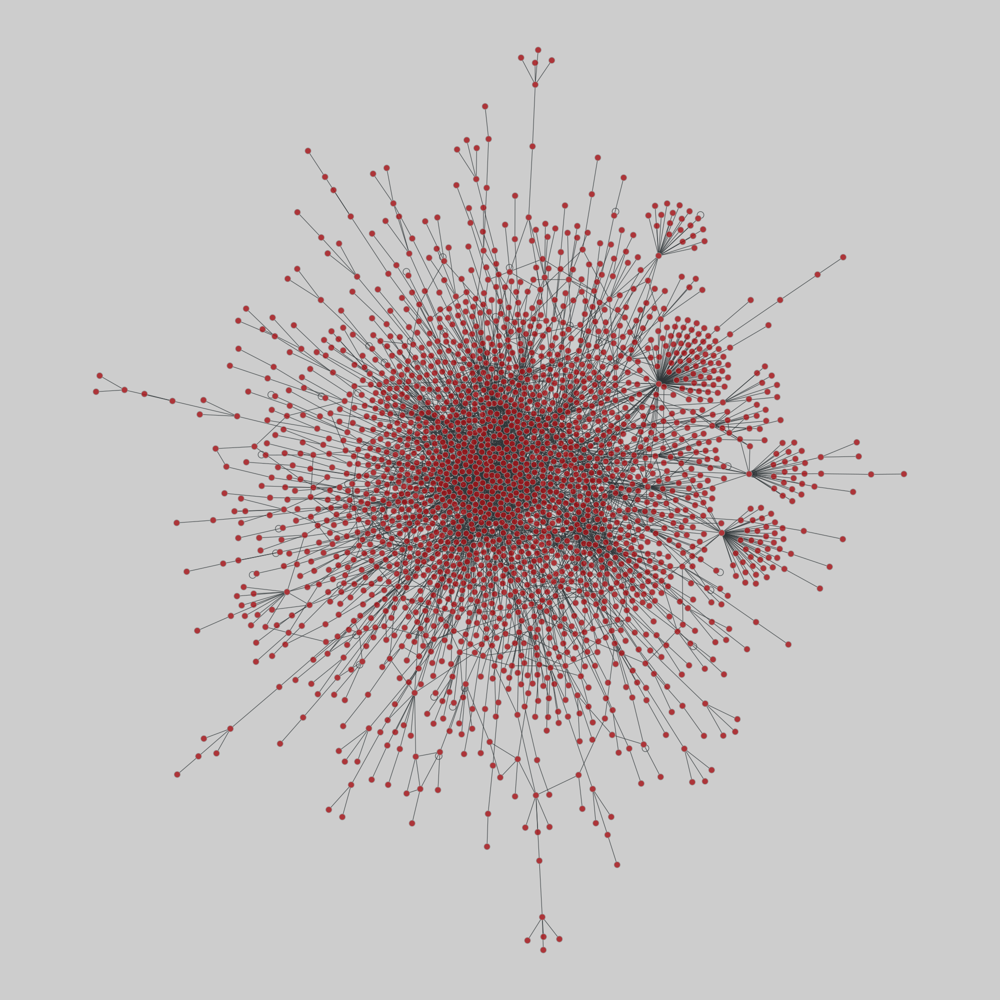

WI8 2,528 3,864 3.06 5.78 11.43 40.08 -0.14 0.02 14 0.88 Undirected Unipartite name 56 KiB 74 KiB 74 KiB 60 KiB
IntegratedNetwork 6,176 178,151 57.69 123.63 361.03 114.24 0.16 0.47 12 0.97 Undirected Unipartite name 259 KiB 726 KiB 711 KiB 557 KiB
Ridiculograms*
* These are automatically generated force-directed visualizations, and can be quite meaningless for networks both big and small. They should not be taken seriously as sources of scientific insight. See here for a discussion.
